Air Dryers
Point-of-Use Air Dryer
Compact compressed air drying solutions designed for point-of-use moisture removal, pneumatic equipment protection and stable industrial air quality control
- ●
- Patented Technology & CE Certified
- ●
- No Filter Element Required
- ●
- Power-Free Operation
- ●
- Maintenance-Friendly Design
- ●
- Long Operating Life
Typical Applications
- CNC Machines
- Coordinate Measuring Machines (CMM)
- Medical Equipment
- Food Processing Equipment
- Coating Equipment
- Laser Equipment
Recommended Installation Setups

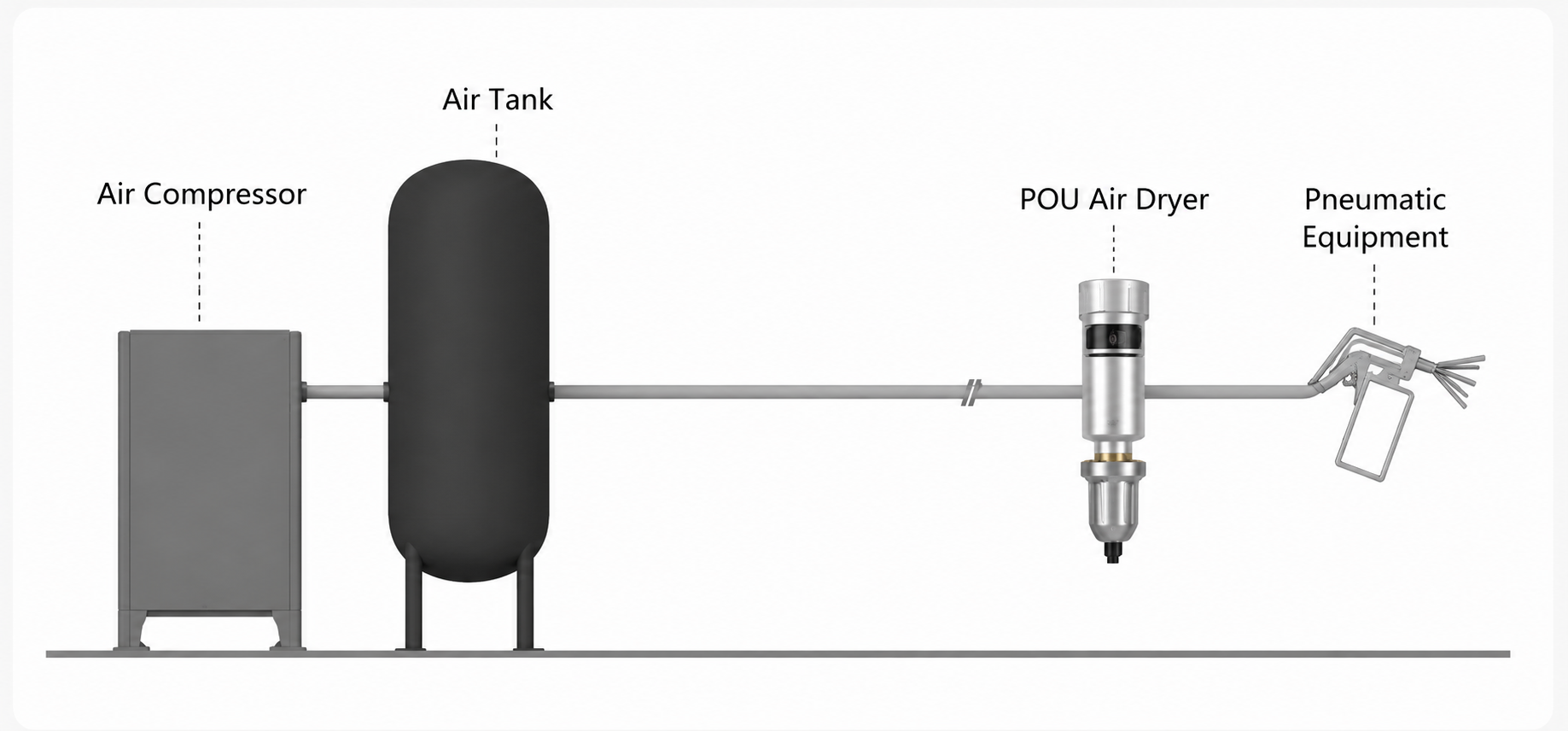

In the absence of any prior air filtration measures, the air filter can serve as an integrated unit for filtration, drying, and oil-water separation.

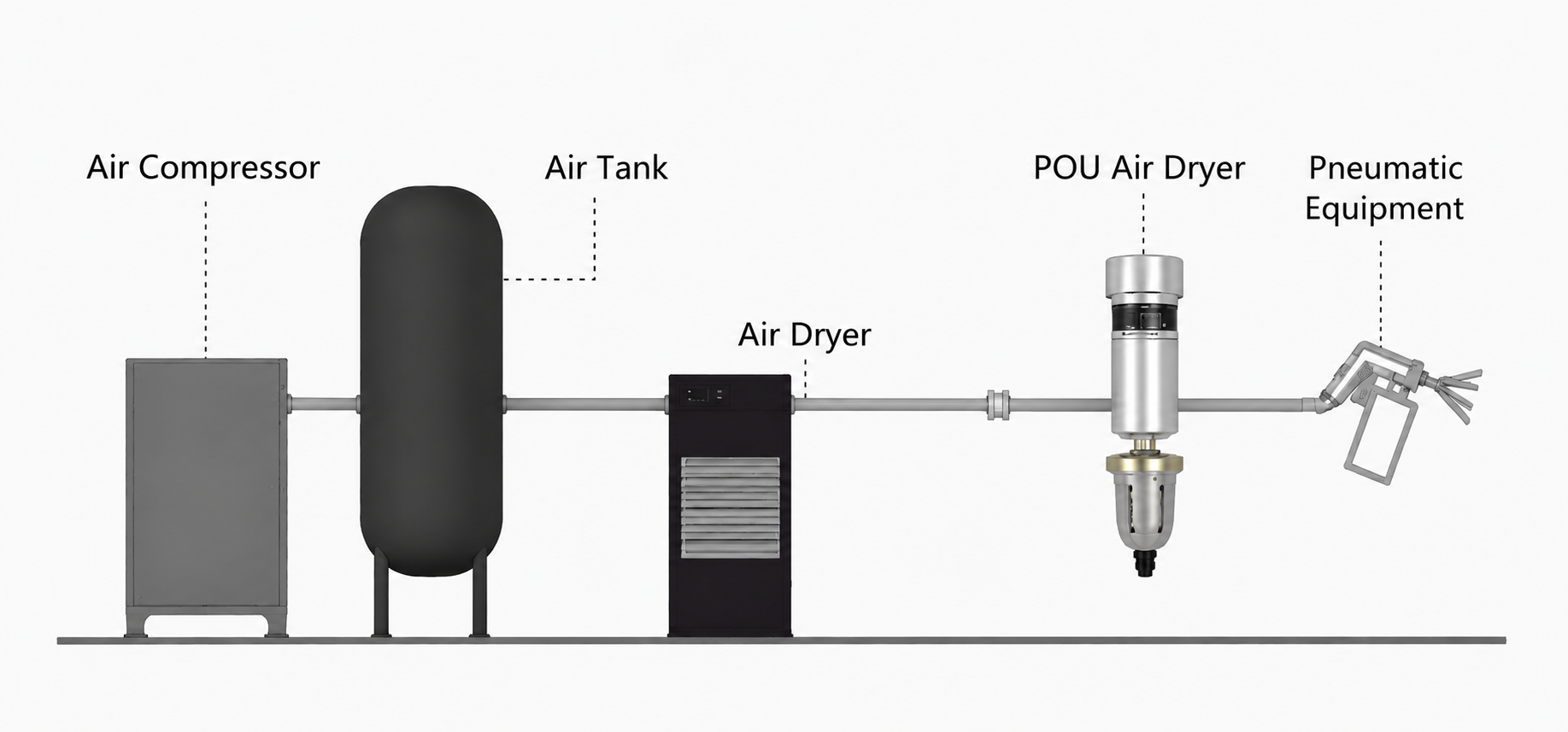

When an air dryer is already installed in the system, the Point-of-Use Air Dryer can be used as an auxiliary filter and liquid water separator.

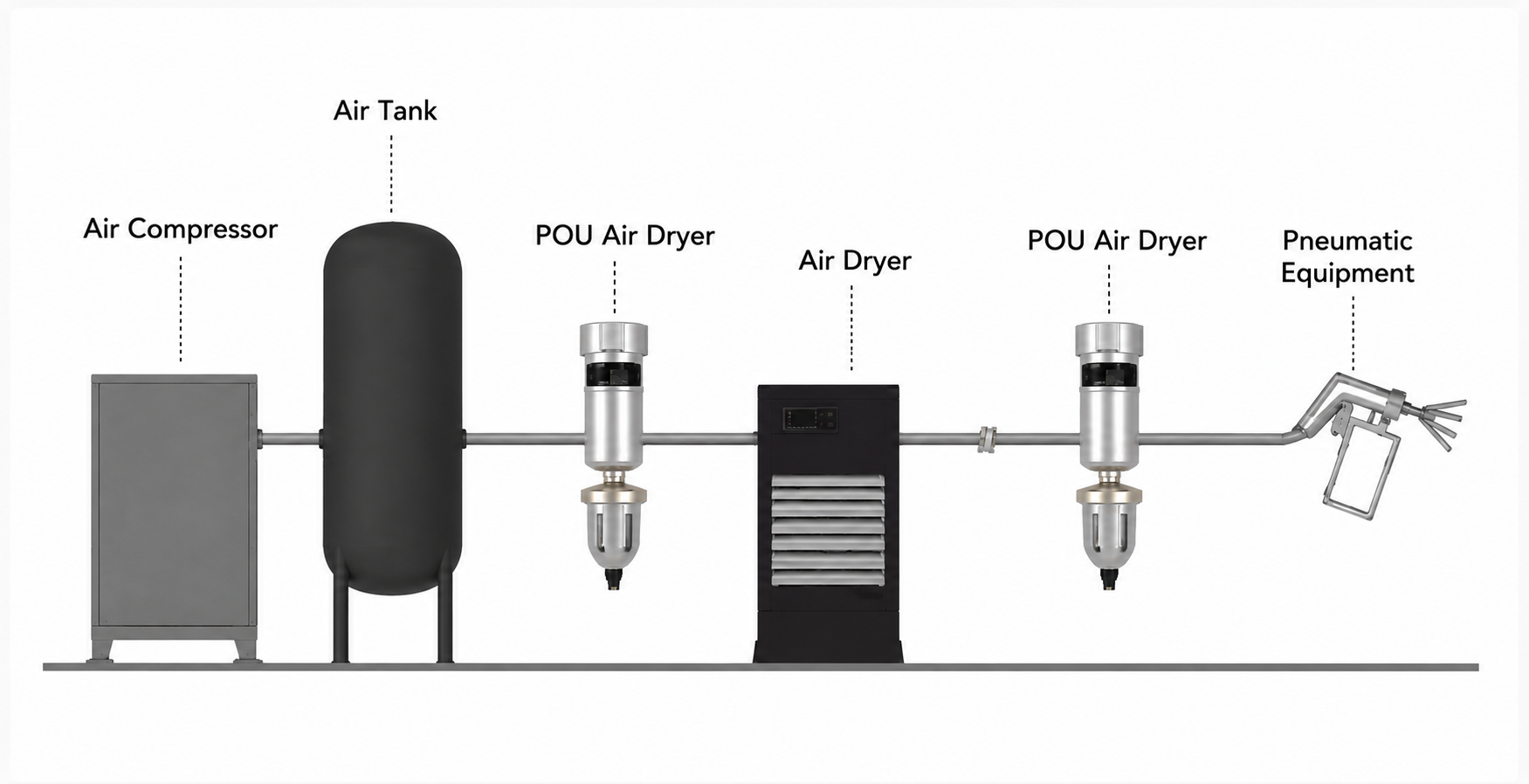

The Point-of-Use Air Dryer can be used as a standalone oil-water separator or filter unit, and can also be installed upstream of the dryer to improve drying performance.

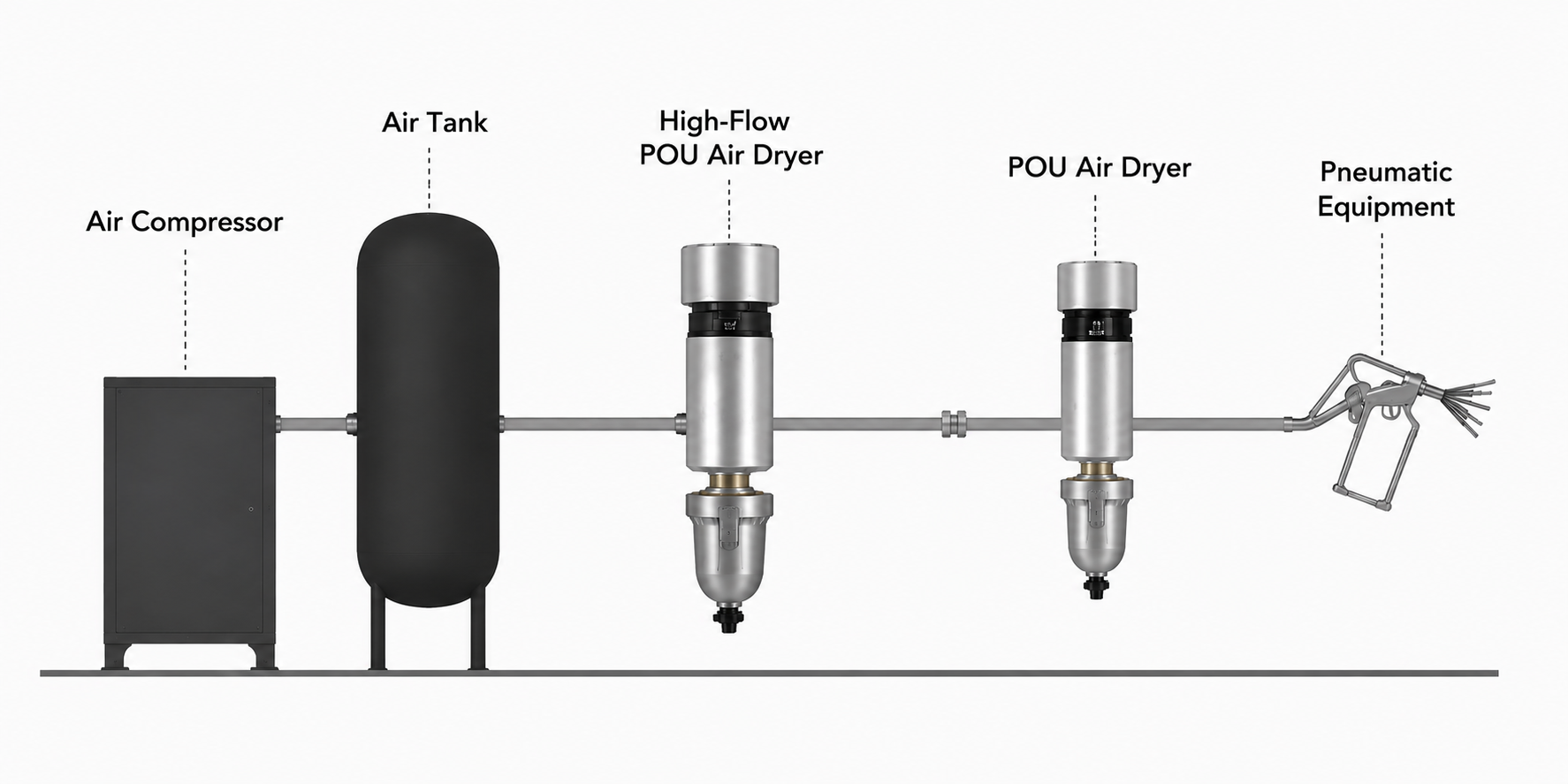

For high-flow applications, a high-flow Point-of-Use Air Dryer can be used as primary treatment to remove large volumes of liquid water or contaminants, with a Point-of-Use Air Dryer installed before the point-of-use to ensure the delivered air is dry and clean.
Model selection depends on airflow, working pressure, humidity conditions, installation space and application requirements. Different systems may require different configurations. Contact us for technical recommendations and solution support.
Specifications

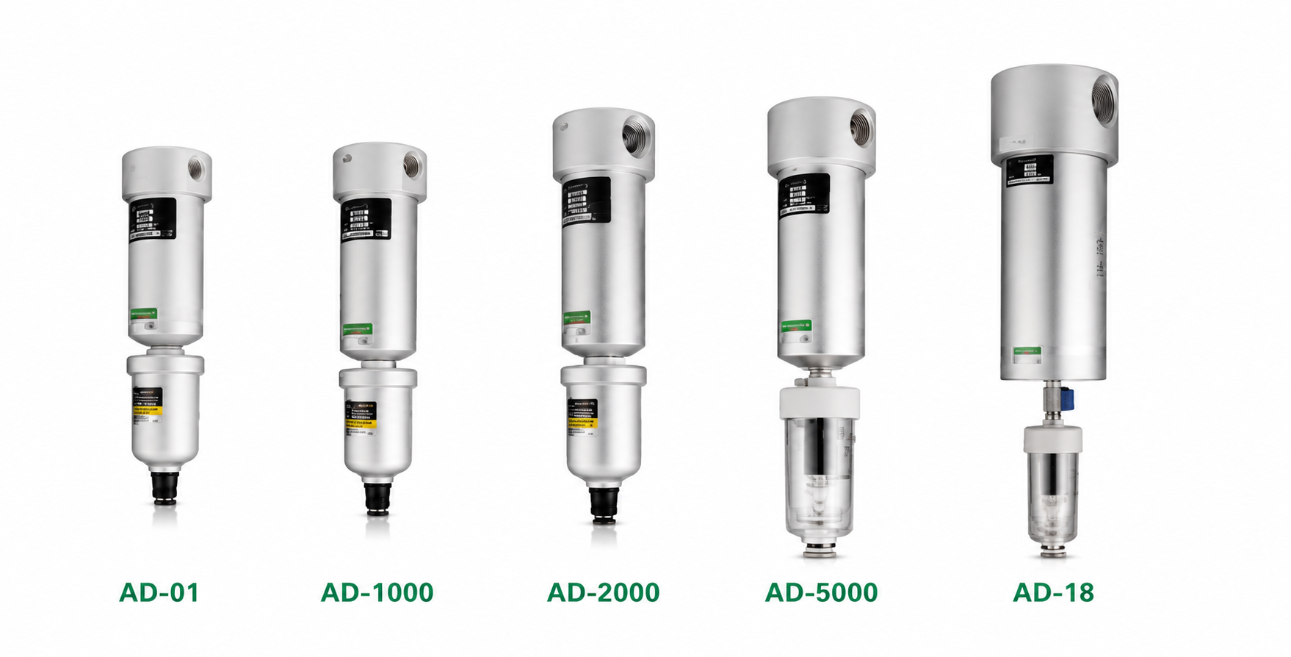

Model No. | AD-01 | AD-1000 | AD-2000 | AD-5000 | AD-18 |
Port Size（Rc) | 3/8 | 1/2,3/8 | 1/2,3/4 | 1" | 2" |
Rated Flow | 1000L/min | 1000L/min | 2000L/min | 5000L/min | 18000L/min |
Working Fluid | Air | Air | Air | Air | Air |
Working Temperature | -5~65℃(Freeze-free) | -5~65℃(Freeze-free) | -5~65℃(Freeze-free) | -5~65℃(Freeze-free) | -5~65℃(Freeze-free) |
Proof Pressure | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa |
Working Pressure Range | 0.1~0.99MPa | 0.1~0.99MPa | 0.1~0.99MPa | 0.1~0.99MPa | 0.1~1.5MPa |
Filtration Accuracy | 3μm | 1μm | 3μm | 5μm | 3μm |
Air Purity Standard | ISO8573-1:2010 | ISO8573-1:2010 | ISO8573-1:2010 | ISO8573-1:2010 | ISO8573-1:2010 |
Bowl Material | Alum. Alloy | Alum. Alloy | Alum. Alloy | Alum. Alloy | Alum. Alloy |
Filtration Efficiency | 99.90% | 100.00% | 99.99% | 99.90% | 99.90% |
Net Weight | 1.6kg | 1.6kg | 2kg | 3.2kg | 10kg |
Dimensions (Dia. × H) | 75×280mm | 80×310mm | 90×350mm | 106×450mm | 178×590mm |
Installation Guidelines
1. Vertical Installation Recommended
Install the unit vertically to ensure stable drainage performance and proper moisture separation.
2. Install Near the Equipment Side
For optimal performance, install the POU air dryer before the pneumatic equipment.
Long pipelines may generate secondary condensation due to temperature differences inside the air system.
3. Maintain Sufficient Piping Distance
A piping distance of approximately 20 meters or more from the air compressor is recommended to improve cooling and condensate separation efficiency.
4. Confirm Airflow Direction
Please verify the inlet and outlet ports before installation to ensure correct airflow direction.
5. Additional Cooling for Systems Without Central Dryers
If no central air dryer is installed, additional cooling of the air line before the POU air dryer may help improve moisture removal performance.
6. Install FRL Components Downstream
Pressure regulators, FRL units and other pneumatic components are recommended to be installed after the POU air dryer.
If you have any questions about installation or configuration, please contact us for support.
