Pneumatic Air Tubing
Industrial PU Pneumatic Air Tubing
Flexible pneumatic tubing designed for compressed air transmission in industrial automation systems. Suitable for pneumatic tools, CNC machines, packaging equipment and air piping applications. Compatible with standard push-to-connect fittings and available in multiple sizes and colors.
Designed for compressed air transmission in pneumatic and industrial automation systems. Suitable for air tools, pneumatic valves, cylinders, CNC equipment and automatic machinery applications.
Manufactured from high-quality PU material with good flexibility, pressure resistance and stable airflow performance.
Product Features
✅ High-Quality Virgin PU Material
Made of 100% new polyurethane resin, no recycled material, ensuring uniform wall thickness, high pressure resistance, and long service life.
✅ Superior Pressure Performance
Rated for 1.2 MPa (12 bar) working pressure with a 3.6 MPa burst pressure, providing a high safety factor to prevent hose burst.
✅ Wide Temperature Compatibility
Works reliably from -20℃ to 60℃, maintaining flexibility in both low-temperature winter and high-temperature summer environments.

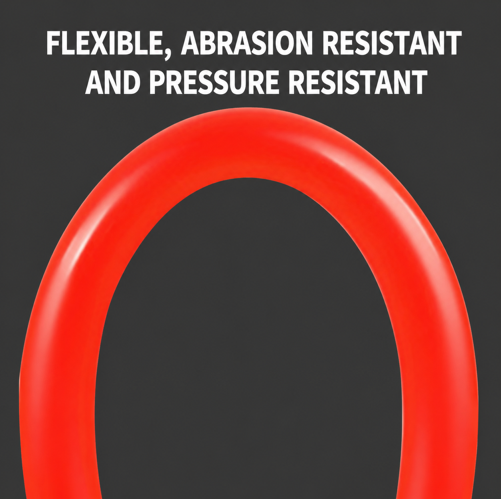

✅ Excellent Flexibility & Abrasion Resistance
Highly elastic PU material with great bendability, no kinking or cracking even with frequent bending. The smooth surface is wear-resistant for long-term use.

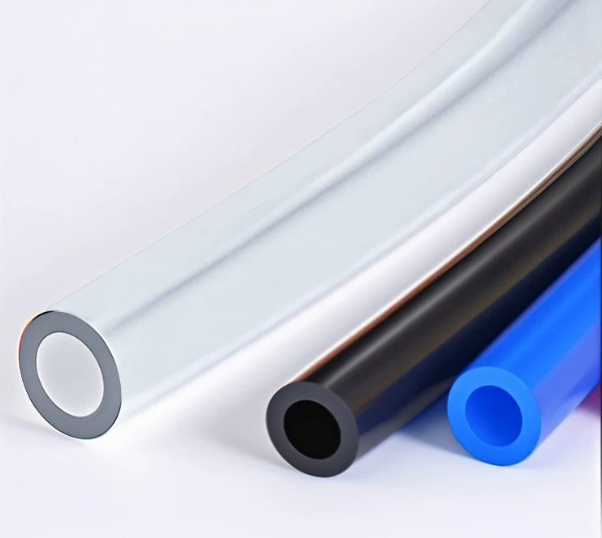

✅ Full Size & Color Options
Available in common sizes (4/6/8/10/12/14mm OD) and colors (red, blue, black, clear), compatible with all standard pneumatic fittings.
✅ Versatile Industrial Applications
Ideal for automation equipment, pneumatic tools, robotics, packaging machinery, and general air line systems.
Technical Specifications
Item | Description |
Product Name | PU Pneumatic Tubing / Air Hose |
Material | Polyurethane (PU) |
Operating Temperature | -20℃ ~ +60℃ |
Working Pressure | 1.2 MPa (12 bar / 12 kg/cm²) |
Burst Pressure | 3.6 MPa (36 bar / 36 kg/cm²) |
Hardness | 85A-95A |
Wear Resistance | 35mg |
Tensile Strength | 110 KG/cm |
Media | Non-corrosive air, water, oil |
Available Sizes (OD × ID) | 4×2.5mm, 6×4mm, 8×5mm, 10×6.5mm, 12×8mm, 14×10mm |
Available Colors | Red / Blue / Black / Clear |
Available Specifications
Tube Size | Common Application |
|---|---|
4×2.5 mm | Small pneumatic systems |
6×4 mm | Compact automation equipment |
8×5 mm | General industrial applications |
10×6.5 mm | Medium airflow systems |
12×8 mm | High airflow applications |
If you have questions about model selection, installation, or troubleshooting, please contact us for personalized recommendations.
