Multi-Port Pneumatic Silencer with Built-in Drainage
High-performance multi-port pneumatic silencers with built-in drainage. Reduce exhaust noise, eliminate condensate buildup, and ensure low backpressure for reliable operation in industrial automation and vacuum systems.
Product Introduction
Full-range noise reduction, suitable for positive and negative pressure systems. Built-in drainage prevents clogging. Multi-port design saves space with low backpressure and steady performance.
Core Advantages
1. 45dB+ noise reduction
2. Drainage & oil removal, anti-blocking
3. Compatible with positive & negative pressure
4. Multiple port options, compact installation
5. Low backpressure, reliable operation
Applicable Industries
● CNC Machining
● Automation Equipment
● Packaging Machinery
● Electronic Manufacturing
● Vacuum System
● Pneumatic Control
Application Scenarios
- Silencing exhaust of solenoid valves and cylinders 电磁阀、气缸排气降噪
- Noise reduction for vacuum pipelines 真空管路消音
- Humid and oily compressed air pipelines 潮湿含油气管路
- Compact automated production lines 紧凑型自动化产线
Specifications
Core Parameters
Parameter | Specification |
|---|---|

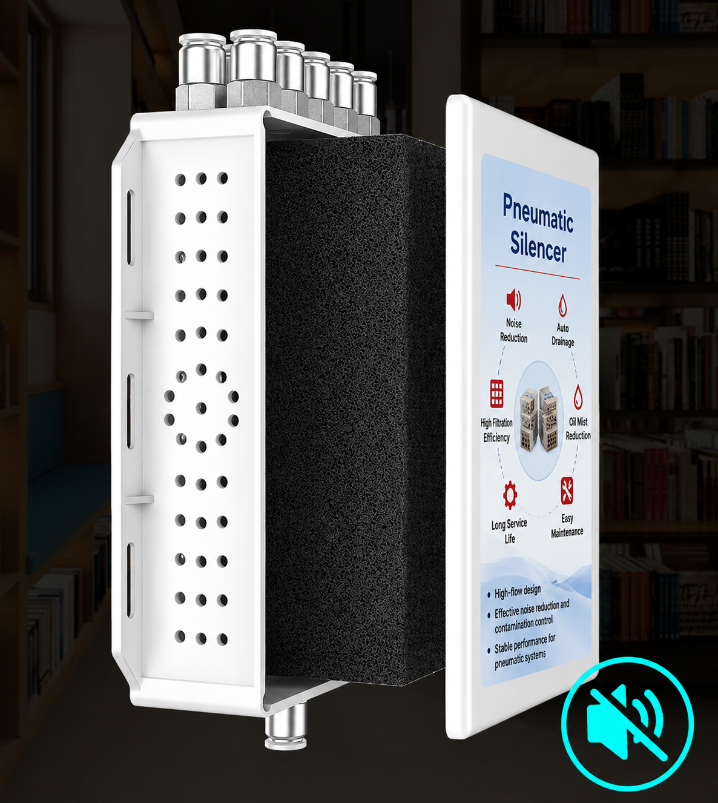

Material | ABS Engineering Plastic + High-Density Sound-Absorbing Foam |
Compatibility | Positive/Negative Pressure Systems |
Drain Port Size | Φ8mm |
Connection Size | Φ12mm (customizable) |
Model Options & Flow Rates (Non-Vacuum Use)
Model (Ports) | Max Airflow |
|---|---|
1-Port | 1.5 m³/min |
2-Port | 3.0 m³/min |
3-Port | 4.5 m³/min |
4-Port | 6.0 m³/min |
n-Port | 1.5*n m³/min |
15-Port | 22.5 m³/min |

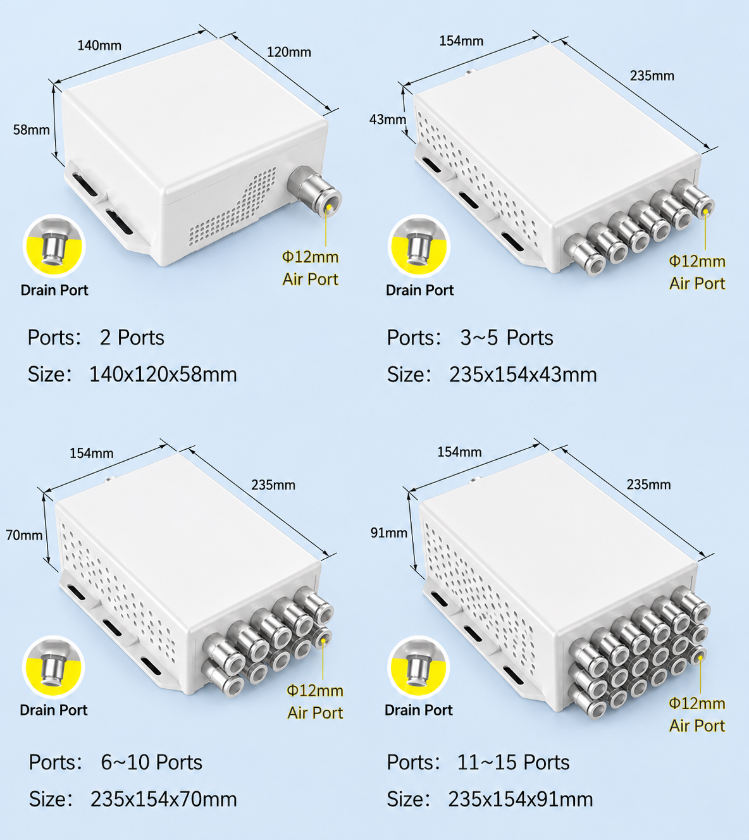

Dimensions
Installation Guidelines
1.Vertical Installation Required
Install the unit vertically to ensure proper drainage of condensate and oil mist. Tilted installation may cause liquid buildup and reduce noise reduction efficiency.
2.Confirm Airflow Direction
Verify the inlet (connected to pneumatic component exhaust) and outlet/drainage ports before installation.
3.Drainage Port Must Face Downward
The built-in drainage outlet must face downward to allow gravity discharge of accumulated liquid. For continuous operation, connect a drain hose to the port.
4.Install at the Exhaust End

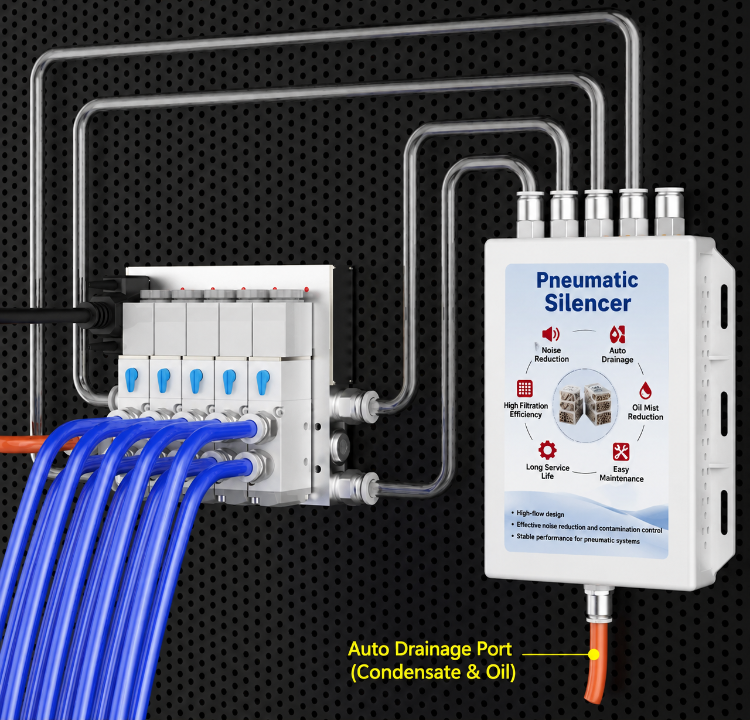

Mount the silencer directly at the exhaust port of solenoid valves, cylinders, or vacuum generators to minimize backpressure.
5.Multi-Port Configuration Tips
When connecting multiple components, ensure balanced airflow distribution across ports to avoid uneven backpressure.
Welcome to contact us for model selection and technical support.
