What Is a Point-of-Use Compressed Air Dryer?

Learn what a point-of-use compressed air dryer is, where it is installed, how it works, and how it protects machines from residual moisture.

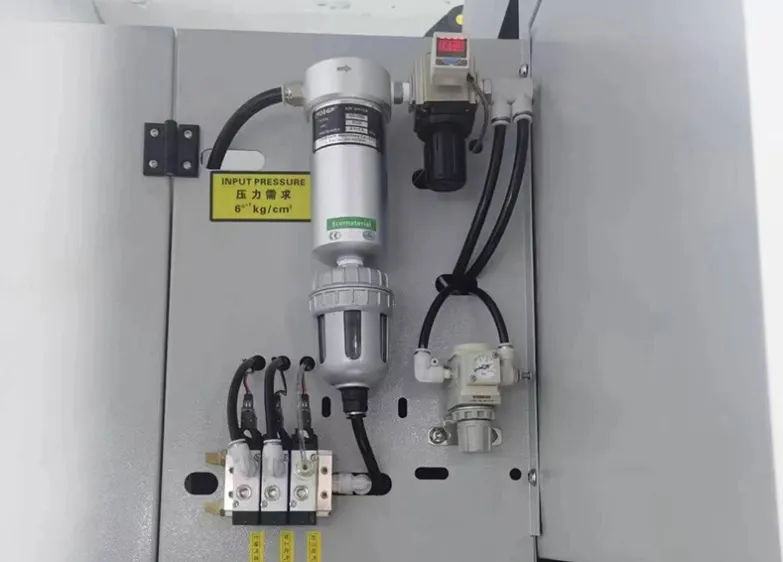

什么是末端气源干燥
Compressed air is widely used to power machines, pneumatic tools, valves, cylinders, automated production lines, and precision equipment.
However, compressed air is not naturally clean or dry. It may contain water vapor, liquid condensate, oil aerosols, and particles. If these contaminants reach sensitive equipment, they may cause corrosion, unstable operation, product defects, and increased maintenance requirements.
A point-of-use compressed air dryer is installed close to the machine or application where compressed air is consumed. Its purpose is to provide an additional level of moisture protection before compressed air enters the equipment.

Why Can Moisture Still Reach the Machine?

A central refrigerated or desiccant dryer is an important part of a compressed air system. However, water may still appear at the point of use for several reasons.
Compressed air may continue to cool while moving through long pipelines. As its temperature decreases, additional water vapor may condense into liquid water.
Moisture may also reach downstream equipment when:
  • The central dryer is overloaded
  • Air demand changes suddenly
  • Ambient temperature or humidity is high
  • Drain valves are not working correctly
  • Water has accumulated in low points of the pipeline
  • The pipeline has an unsuitable layout
  • Maintenance has not been carried out on time
A point-of-use air dryer or moisture separator provides localized protection against these problems.


Where Is a Point-of-Use Air Dryer Installed?


A central air dryer is normally installed in the compressor room and treats compressed air for a large part of the facility.
A point-of-use dryer is installed farther downstream, usually:
  • Near the machine air inlet
  • Before a pneumatic control system
  • Before a CNC machine
  • Before an automated production unit
  • At a local compressed air outlet
  • Before sensitive valves, cylinders, or instruments
Installing the dryer close to the application helps address moisture that may remain in the distribution system or form again as compressed air travels through the pipeline.

A typical installation arrangement may look like this:
Air compressor → Aftercooler → Air receiver → Central dryer → Main pipeline → Point-of-use dryer → Machine


How Does a Point-of-Use Dryer Work?

Different point-of-use dryers use different technologies.
Some models use desiccant material to remove water vapor and reduce pressure dew point. Others use membranes, refrigeration, filtration, or mechanical separation.
A centrifugal point-of-use air dryer works differently from a desiccant dryer. It creates a rotating airflow inside the unit. The centrifugal force separates heavier liquid droplets and contaminants from the compressed air. The separated liquid moves toward the collection and drainage area, while the treated air continues to the downstream equipment.
This type of device is primarily designed to remove entrained liquid water and certain oil-water contaminants. It should not automatically be considered equivalent to a desiccant dryer designed to achieve a very low pressure dew point.


Point-of-Use Dryer vs. Central Dryer

The two systems have different roles.
A central dryer:
  • Treats a large volume of compressed air
  • Provides basic air quality for the facility
  • Is normally installed near the compressor
  • Supports multiple production areas
A point-of-use dryer:
  • Treats air for a specific machine or application
  • Is installed close to the equipment
  • Provides additional protection against downstream moisture
  • Can be added to an existing compressed air system
In many installations, the two systems work together.
A point-of-use air dryer is generally not intended to replace a correctly selected and maintained central dryer. Instead, it acts as an additional protective stage for critical equipment.


What Equipment Can Benefit?

Point-of-use moisture protection may be useful for:
  • CNC machines
  • Pneumatic valves and cylinders
  • Packaging equipment
  • Automated production lines
  • Air-operated tools
  • Coordinate measuring machines
  • Spray and coating equipment
  • Local air-blowing applications
  • Precision instruments
  • Equipment installed far from the compressor room
The suitability of a dryer depends on the airflow, pressure, temperature, contamination level, and air quality required by the equipment.


Conclusion

A point-of-use compressed air dryer is a localized air-treatment device installed close to the application.
It helps reduce the risk of residual liquid water entering machines and pneumatic components. When used together with a central compressed air treatment system, it can provide an additional layer of equipment-side protection.
Before selecting a model, always confirm whether the application requires liquid-water separation, particle filtration, oil removal, or a specific pressure dew point. These requirements may require different treatment technologies.
